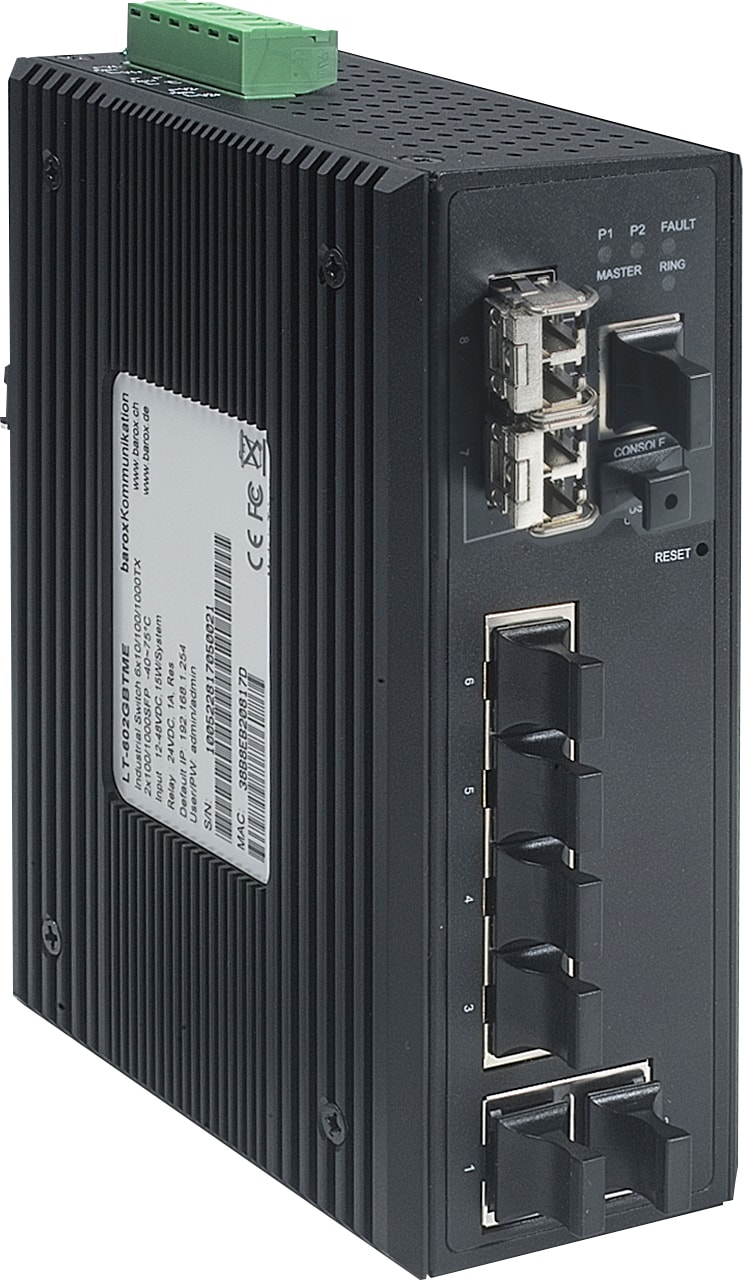

Fiber Optic Switch

583394.11

Approval: EN 54-16

The Fiber Optic switch is used for designing an Ethernet network in loop topology. On account of the loop structure, the network is fully redundant since, in the case of a fiber rupture, it is possible to still communicate through the other side of the loop. In addition, every Fiber Optic switch has two operating voltage inputs (24 V DC) and one relay for the forwarding of fault signals.
The Fiber Optic switch can be equipped with one (for point-to-point connection) or two (for redundant loop connection) fiber optic module(s):
583392.11 Fiber Optic module for FO Switch multi mode for up to 2 km distances
583393.11 Fiber Optic module for FO Switch single mode for up to 20 km distances

•6-port 10/100/1000Tx Gigabit Ethernet
•2-port 100/1000 SFP Slot
•Configuration: Web GUI, Serial Console, CLI Command
•Network Redundancy support: G.8032 ERPS,RSTP,MSTP
•Supports IGMP v1/v2, up to 256 groups
•Supports IEEE802.1p QoS and CoS/ToS
•Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3
•System Warning setting for automatic warning through e-mail
•Redundant Power Input Design, 12-48 V
•Rugged Metal Case Design
•DIN-Rail Mounting, Wall Mounting (optional)

Operating voltage 12-48VDC, Redundant Input
Power consumption 15 Watts
Ambient temperature -5 °C … +45 °C
Air humidity 15 % … 95 % rel. hum. (non-condensing)
Housing Metal, IP30 protection
Weight
Unit Weight: 0.87kg, Shipping Weight: 1.27kg
Dimensions 46 x 142 x 99 mm
Mounting
DIN-Rail Mounting
Specification
EN 54-16
