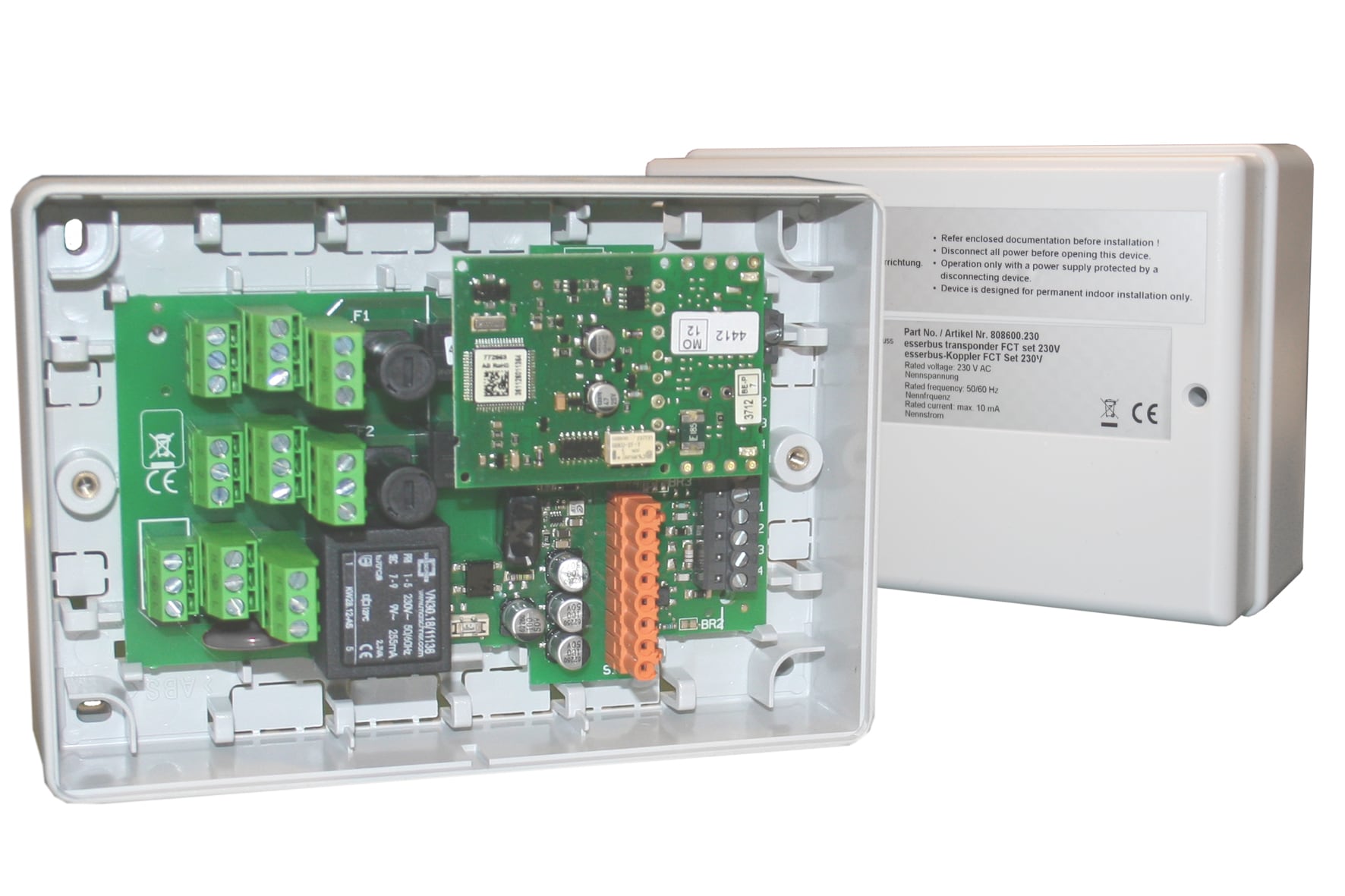

esserbus transponder FCT set 230 V

808600.230

Approval: VdS

The FCT is used for the monitoring and operation of fire control systems such as ventilation, pressure monitor pumps, extinguishing agent sprinklers, fire dampers, smoke control flaps, elevators and many more. Time-dependent machine shutdowns can be carried out via two freely programmable relays. The pluggable modules (up to two modules can be connected) are each equipped with a contact input for operational feedback.

The comprehensive "fail-safe" function ensures that the transponder maintains full functionality and remains a self-sufficient activation device even if the FACP or field bus fails.

Using the 230 V version the mains voltage can be switched directly and be simultaneously used to power the transponder output. It is also possible to indirectly monitor the function of the mains voltage using internal logic.

The esserbus transponder FCT 12-24 V or 230 V is used as a loop device for the IQ8Control or FlexES control FACP. The tools 8000 programming software (as of version V1.15.1) is necessary for the start-up.
  • 230 V AC operation with optional function monitoring
  • Comprehensive fail-safe function during failure of the loop or mains voltage
  • Freely programmable relays
  • Monitoring contacts for monitoring of external devices
  • Time-dependent control of relay outputs
  • Optional: relay outputs with programmable impulse lengths
  • Reduction of amount of data transmitted to panel via build-in logic processing
  • Integrated loop isolator
  • Optional IP protection base for usage in difficult ambient conditions

Additional Information:
The FCT cannot be operated in the following systems:
FACP 80, System 3000 (FACP 3007/3008), FACP 8008, FACP 8000 C/M, ECP 8010

Scope of Delivery:
1 x FCT control module
1 x FCT electronic module (part no. 804981)
1 x Surface mounted housing (part no. 788653)
Connection terminalmax. 2,5 mm²
CE certificate0786-CPD-20991
Contact load relay30 V DC/ 4 A, 230 V AC / 4 A
Storage temperature-10 °C ... 50 °C
MaterialPC
Rated frequency50 ... 60 Hz
Rated voltage VAC230
Rated current0.01 A
Air humidity< 95 % (non-condensing)
Maximum switching capacitymax. 30 V DC / 230 V AC
Type of protectionIP30 (with housing) ; IP 55 (with IP-base composition 788655)
Current consumption10 mA
Ambient temperature-5 °C ... 45 °C
VdS-NrG 210091
DimensionsW: 235 mm H: 61.5 mm D: 140 mm
