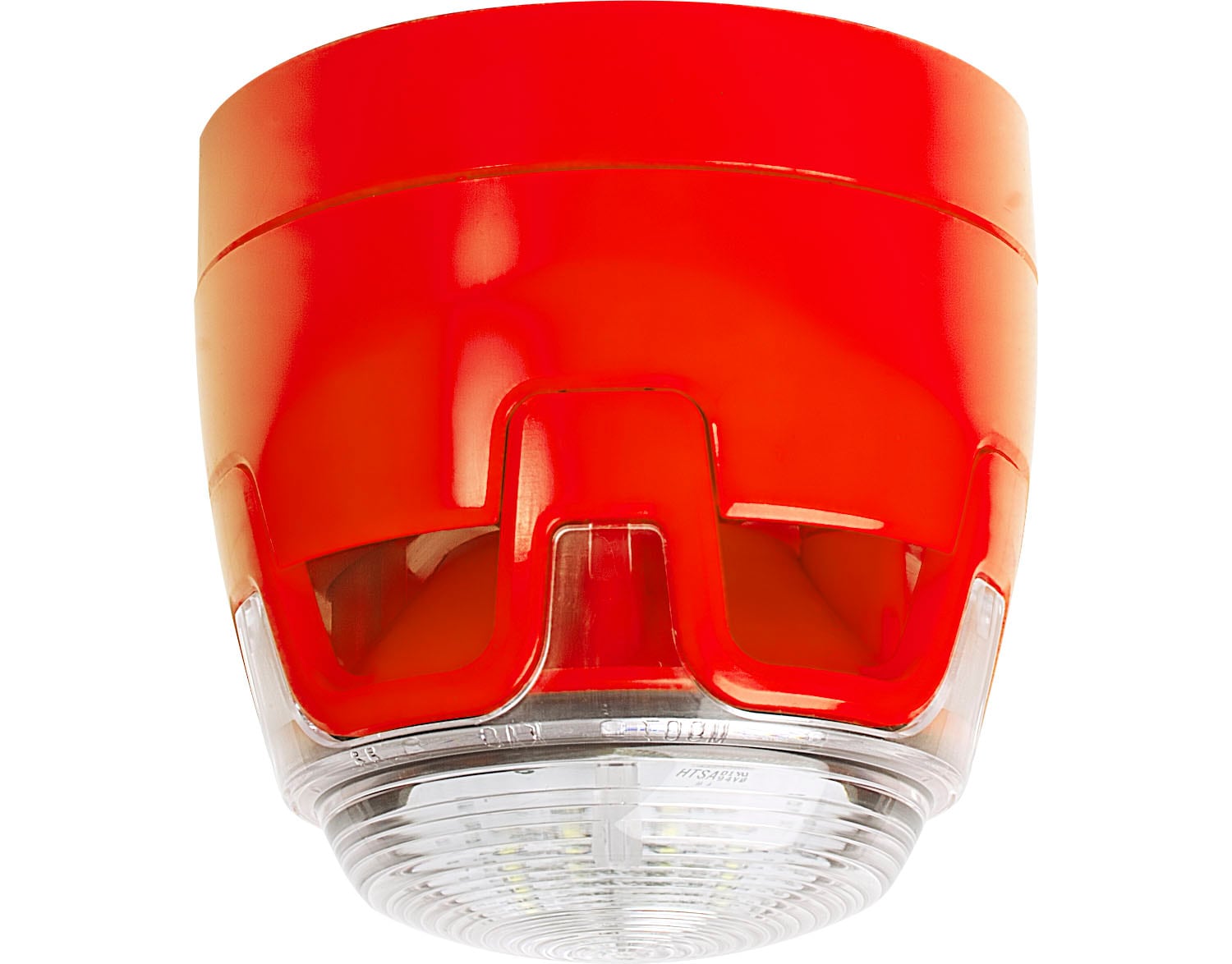

EN Sounder/Strobe with white strobe En54-23, C & W class, IP65

CWSS-RW-W5

Combined acoustic and optical alarm signaling device, with IP65 Ingress rate protection enclosure is EN 54-3 & EN 54-23 compliant, in red housing, and offers a selection of 32 signal tones including the DIN tone and other country-specific tones. All tones comply with EN 54-3. Tone configuration takes place via a 6-pin DIP switch. Up to two different signal tones may be activated. The optical signaling device with white strobe is suitable in accordance with EN 54-23 for square signal ranges W-2.4-8.9 and cylindrical signal ranges C-3-10 / C-6-10. Signaling device with flat base, suitable for wall and ceiling mounting.
  • Synchronous sound and flash trigger
  • Volume adjustable to 2 levels at the device
  • C & W category
  • Signal range up to 8.9 m room width for wall mounting
  • Signal range up to 10.0 m room diameter for ceiling mounting
  • Specifications: EN54-3, EN54-23

Scope of Delivery
Includes surface mounting base
