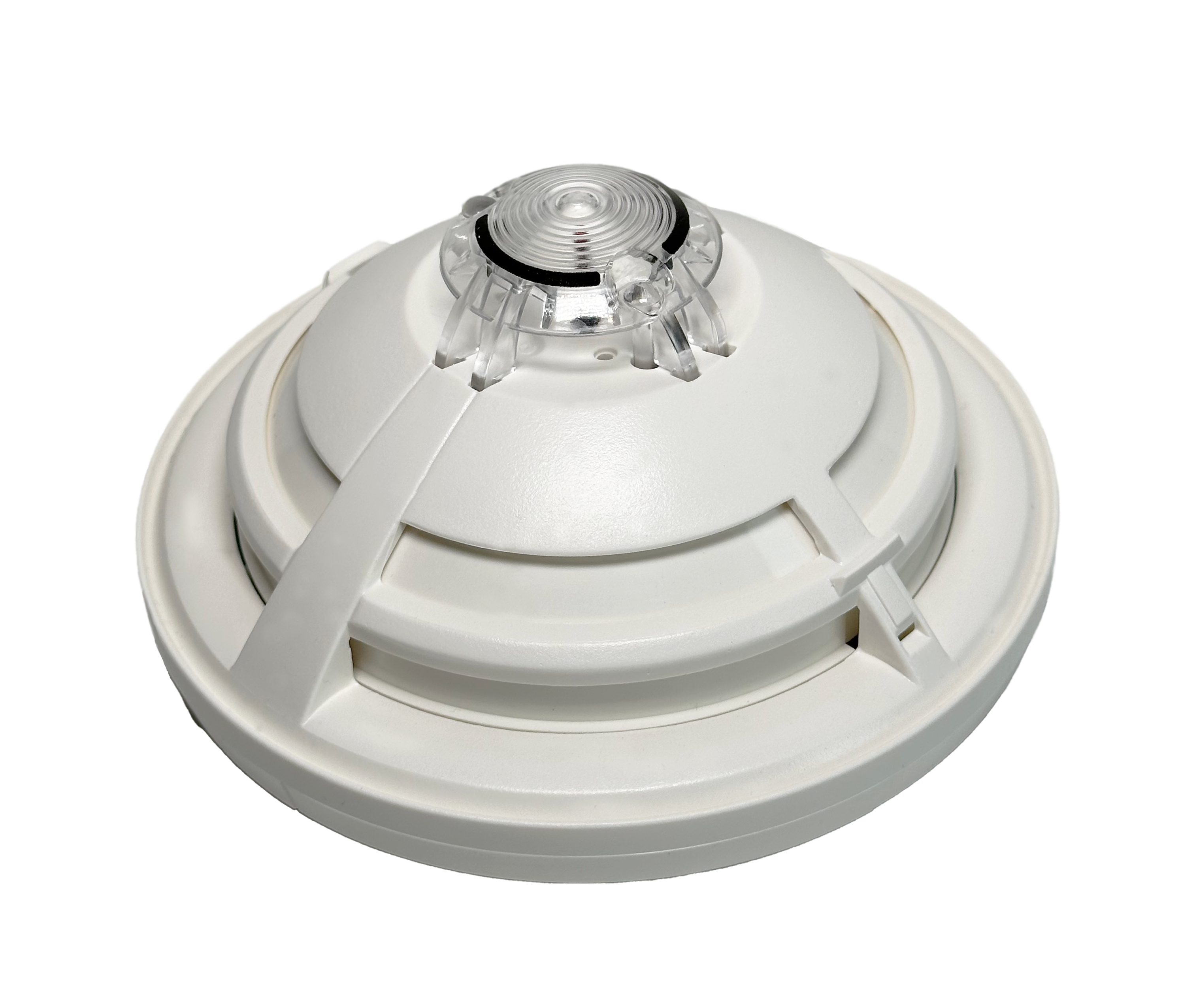

RATE-OF-RISE HEAT DETECTOR IQ8QUAD Self-Test

802271-ST

Approval: G225003

Automatic point-type smoke or heat detector with integrated loop isolator and self-test function to connect to the esserbus® or esserbus®-PLus loop of the ESSER fire alarm control panels. Each detector uses patented self-test technology that automatically applies heat to the sensor inside the detector to physically test the operation of the heat sensor.

Features & Benefits
Technical Data
Accessories
Documents

•Fully patented automated Self-Test function of thermal sensor

• Ability to test across multiple panels and loops simultaneously

• Integrated Bluetooth interface to localize the detector

• Real-time information allowing one-man inspection via CLSS

• App

• Fully digitized maintenance,inspection functions and reports

• Complete self-monitoring and automated diagnostics

• Short circuit and interruption tolerant

System requirements:
Programming software Tools 8000 version V1.28 or later · FlexES Control CPU version V4.10 or later · FlexES HMI version V1.06 or later · GLSS-Gateway Firmware version 4.6.0.9 or later

Operating voltage	9,2 V DC … 42,4 V DC
Operating voltage (EN 54-17)	14 V DC ... 42,4 V DC
Operating voltage self-test	34 V DC … 42,4 V DC
Monitored area	max. 30 m² / max. 110 m²
Mounting height	max. 7,5 m / max. 12 m
Air velocity range	Standard operation: --- 0 … 25,4 m/s - Self-test active: --- 0 … 1,5 m/s (as per VdS) may vary from country to country.
Loudness of the fan	55 dB (A) @ 1 m
Ambient temperature self-test	0 °C … +40 °C
Temperature, storage : . · Specification: · :	-25 °C … +65 °C
Ambient humidity	≤ 95% humidity (non-condensing)
IP rating	IP 21 with base, IP 42 with base + option 805570, IP 43 with base + option 805572.50/805573
Housing	ABS
Colour	white (similar RAL 9010)
Dimensions (with base)	Ø 117 mm, H = 70 mm
Quiescent current @ 19 V DC	50 µA
Quiescent current @ FACPAccu	0,09 mA @ 27,5 V / 0,11 mA @ 42 V
Ambient temperature	-20 °C … +50 °C
Weight: approx	86 g
Specification	EN 54-5 A1R / EN 54-17
Declaration of Performance	DoP-ST020241115

Standard detector base for IQ8Quad 805590
Detector base with relay contact for IQ8Quad 805591
Detector cover for IQ8Quad ST with built-in alarm sounder (50 pcs) 805589ST
Detector removal tool 805580
Label plate for detector base IQ8Quad (10 pcs) 805576 ·
Base cover for IQ8Quad (50 pcs) 805587
IQ8Quad detector heating element 259529
EMC shield for IQ8Quad, ES Detect detector base (10 pcs) 805560
IP 43 moisture-proof sm base 805572.50

Type	Name	Size
Promotional - Product Data Sheets
	ESSER self-test detectors IQ8Quad-ST _802x7x_ datasheet BG 0225	319 KB
	ESSER self-test detectors IQ8Quad-ST _802x7x_ datasheet EN 0225	316 KB
	ESSER self-test detectors IQ8Quad-ST _802x7x_ datasheet EST 0225	307 KB
	ESSER self-test detectors IQ8Quad-ST _802x7x_ datasheet GR 0225	313 KB
	ESSER self-test detectors IQ8Quad-ST _802x7x_ datasheet HU 0225	306 KB
	ESSER self-test detectors IQ8Quad-ST _802x7x_ datasheet LV 0225	311 KB
	ESSER self-test detectors IQ8Quad-ST _802x7x_ datasheet RS 0225	303 KB
	ESSER self-test detectors IQ8Quad-ST _802x7x_ datasheet UA 0225	318 KB
